Big Joe Lift Trucks, Inc.

LPT33 Lithium Pallet Truck

LPT33 Lithium Pallet Truck

Regular price $3,299.00 USD
Regular price Sale price $3,299.00 USD
Sale Sold out

Our 3,300 lb. capacity fully electric pallet truck is the most compact and maneuverable product in its class. When coupled with an optional additional easy exchange Li-ion battery, you can achieve infinite duty cycles thanks to their rapid recharge rate and extended run time!

If you’re making deliveries with a lift gate fleet, or moving pallets all day long, the LPT33 is the right choice.

    Features

    • Up to 2.5 hours of run-time per charge

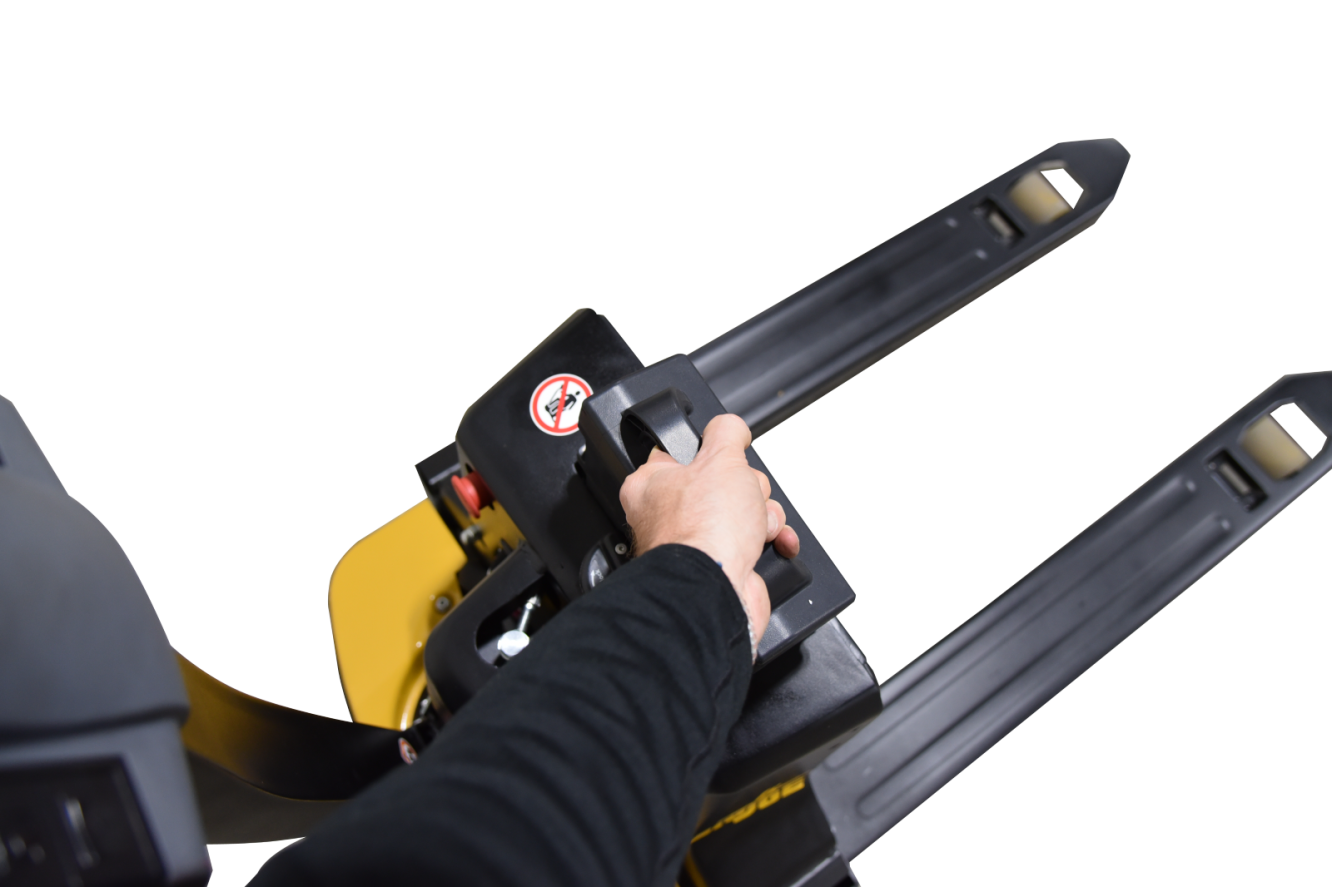

    • Ergonomic handle with reversing switch, horn and dual “butterfly”
    • Thumb controls are intuitive and allow for safe, accurate operation
    • The unique Easy Exchange battery system functions like common cordless hand tools
    • Strong permanent magnet drive motor
    • Battery discharge indicator
    • Key switch to limit access to approved personnel

    Specifications

    • 3,300lbs Capacity @ 24" load center
    • Easy Exchange Battery System: (1) 24V 20AH Li-ion rechargeable battery & 110v integral plug-in smart charger
    • Drive tire: (1) 8.3" x 2.8" polyurethane
    • Load Wheels: (2) 2.9" x 3.5" polyurethane
    • Powered lift and lower
    • Powered travel both forward and reverse
    • Dual butterfly infinitely variable travel controls
    • Travel speed 2.7 mph loaded, 2.9mph unloaded
    • Ergonomic control head includes belly button reversing switch, key switch, battery discharge indicator, creep speed travel control, battery wake-up, and horn
    • Medium gauge tapered and shaped forks
    • Fork collapsed height 3.2", maximum elevation 7.75"
    • Forks 6" wide each, 27" overall width x 45" long
    • Est. duty cycle 2.5 hours continuous
    • Est. charging time 2 hours
    Unit Type
    Lithium Pallet Truck
    Load Capacity
    3,300lb
    Load Center
    24″
    Power
    24V electric with transistor controller
    Battery Charger
    110V plug-in internal
    Fork Dimensions
    27″ W x 48″ L Standard
    Max Fork Height
    7.5″
    Collapsed Height
    3.25″
    Turning Radius
    Download Brochure
    Vehicle Dimensions
    Download Brochure
    Travel Speed
    Download Brochure

    Product Video
