Big Joe Lift Trucks, Inc.
LPT26 Lithium Pallet Truck
LPT26 Lithium Pallet Truck
Regular price
$2,415.00 USD
Regular price
$2,935.00 USD
Sale price
$2,415.00 USD
Unit price
/
per
Couldn't load pickup availability
Our 2,600 lb. capacity fully electric pallet truck weighs in at just 288 lbs, making it an excellent choice for use over retail or commercial floors where a bulkier truck can cause damage.
If your personnel are moving loads over 100 ft with a manual pallet jack, the LPT26 is the safer and more efficient solution for your material handling needs.
Features
- Up to 3 hours of run-time per charge.
- High-efficiency brushless AC drive motor.
- 85AH premium AGM batteries and internal 120v charger.
- Ergonomic handle with tiller-based crawl speed.
- Low gross weight
- Battery discharge indicator
- Key switch
Specifications
- Travel speed is variable from 0 to 2.8 mph unloaded, and from 0 to 2.5 mph fully loaded
- Ergonomic handle houses travel, lift, and lower controls that are accessible without having to lift a hand from the handle
- Safety belly reversing switch, thumb control, and horn
- Brake can be unlocked allowing the unit to roll in the event of a dead battery in a remote location
- Dual butterfly infinitely variable travel controls designed to allow easy operation with either hand
- Removable USB-style key fob
- 24V electric motor with Curtis transistor controller
- Hydraulic system features a permanent magnet pump motor and chrome plated lift cylinder
- Rolls smoothly on 8.3" x 2.8" polyurethane drive tire and (2) 2.4" x 3.1" front load wheels
- Weight: 288 LBS
- Warranty: 2 years or 1000 hrs on frame, transmission, & weldments. 1 year on batteries. All other parts excluding wearables are 6 months or 1000 hrs parts and labor.
- Unit Type
- Lithium Pallet Truck
- Load Capacity
- 2,600lbs
- Load Center
- 24″
- Power

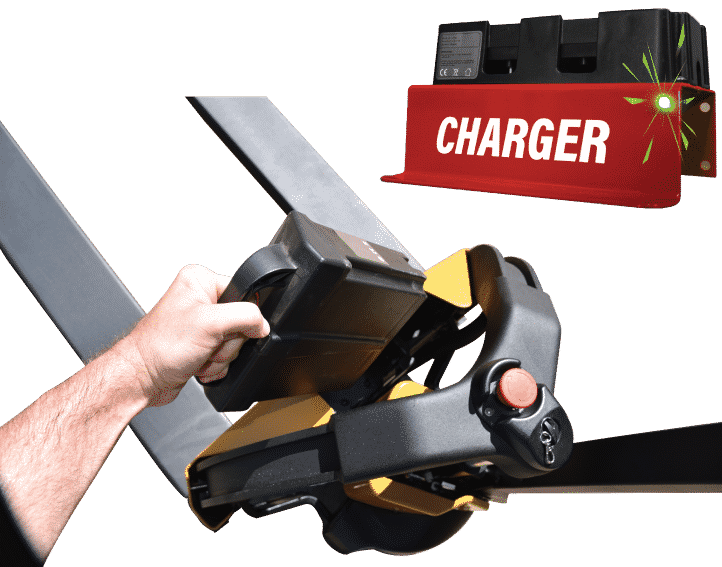

- (1) 24V 20AH Quick Exchange Lithium-Ion battery, battery charge indicator, & 110V external battery charger
- Battery Charger
- 110V plug-in external
- Fork Dimensions
- 27” W x 48” L standard
- Max Fork Height
- 7.5″
- Collapsed Height
- 3.12″
- Turning Radius
- Download Brochure
- Vehicle Dimensions
- Download Brochure
