Big Joe Lift Trucks, Inc.

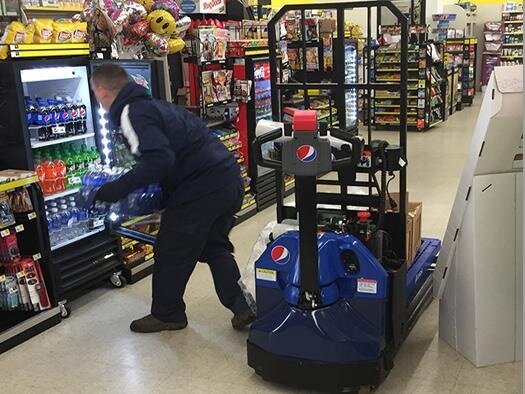

D40 Electric Pallet Jack

D40 Electric Pallet Jack

$4,420.00 USD
$4,420.00 USD
Sale Sold out

Our 4,000lb capacity electric pallet truck has been developed from the ground up to meet the unique demands of local delivery applications. The D40 is thus very compact in design yet it has the power to perform from warehouse to store, both inside or outdoors.

Features

  • Up to 4 hours of run-time per charge.
  • High-efficiency brushless AC drive motor.
  • 85AH premium AGM batteries and internal 120v charger.
  • Ergonomic handle with tiller-based crawl speed.
  • Low gross weight Battery discharge indicator.
  • Battery discharge indicator, Key switch.
  • Optional load backrest with tool tray and load restraint belt available.

Specifications

  • Gradeability: 10% unloaded, 6% loaded
  • Travel speed is variable from 0 to 3.6 mph unloaded (0 to 3.5 mph loaded).
  • Double tap "creep speed" mode (with the handle up) for use in tight spaces.
  • Ergonomic handle houses travel, lift, and lower controls that are accessible without having to lift a hand from the handle. Handle also features a wrap-around guard, belly button reversing switch, thumb control, and horn.
  • Angle grips are designed to allow easy operation with either hand.
  • (2) 12V 85AH AGM batteries, 110V on-board battery charger, & battery charge indicator with hour meter.
  • 24V electric motor with ZAPI transistor controller
  • Key switch for authorized access.
  • Electromagnetic disc brake with anti-rollback & neutral braking.
  • Hydraulic system features a permanent magnet pump motor & lift cylinder with chrome plated rods.
  • Rolls smoothly on 9" x 3" polyurethane drive wheel and 3.25" x 4.5" front load wheels.
  • Optional load backrest with tool tray and load restraint belt available.
  • Warranty: 1 year on frame, transmission, batteries, & chargers. All other items are 6 months parts and 90 days labor.
Unit Type
Motorized Pallet Truck
Load Capacity
4,000lb
Load Center
24″
Power
24 volt / 85 Ah
Rechargeable internal battery pack
Battery Charger
Internal 110V included as standard
Fork Dimensions
27″ W x 48″ L Standard
Max Fork Height
7.5″
Collapsed Height
3.25″
Turning Radius
Download Brochure
Vehicle Dimensions
Download Brochure
Travel Speed
Download Brochure

Product Video

View full details
